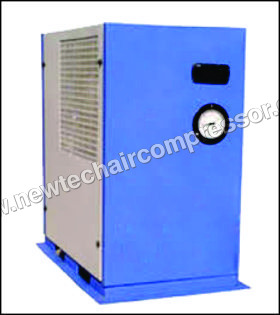

Refrigerated Air Dryer

Refrigerated Air Dryer
Refrigerated Air Dryer
Product Code : 05
Product Description

Refrigerated Air Dryers provide clean and dry compressor air due to effective moisture separation. Ensure a constant dew point at all load levels and will deliver a continuous dry air performance . Refrigerated air dryers provide the very best combination of high efficiency, low pressure drop and small footprint which reduces power consumption reduces installation time and facilitates maintenance.


Features

  • Latest Technology of aluminum plate heat exchangers.

  • Plate type heat exchange are compact and light in weight.

  • Latest technology of vacuum brazing used on the plate type heat exchangers

  • Heat Exchangers put to helium leak test up to 27-bar g

  • Optimum selection of compressor with high COP contributes to power benefits

  • Victaulic coupling provide on the compressed air inlet and outlet connections for easy maintenance.

  • Negligible pressure-drop in the refrigeration line, hence utilizing complete rated cooling capacity of the compressor.

  • Heat Exchangers easily retrofitted without affecting the refrigeration line. Rotolocks at the refrigerant inlet and outlet.

  • Refrigeration piping leak tested with electronics detectors ensuring that the leak is of the order of 3 g/year

  • RS 232 port with interface software provided as` an optional feature for remote monitoring.

  • Capacity: 5 to 85 & 85 to 10,000 cfm.

  • Operating Pressure: 3 to 14 bar g.

Technical Specifications:

The below mentioned Technical Specification are for the following standard conditions

  • Operating Pressure > 7 Bar g

  • Air Inlet Temperature: 45°C

  • Pressure Dew Point: +3°C - ISO 8573.1

  • Condenser Cooling Air/ Water Temp: 40°C / 32°C
